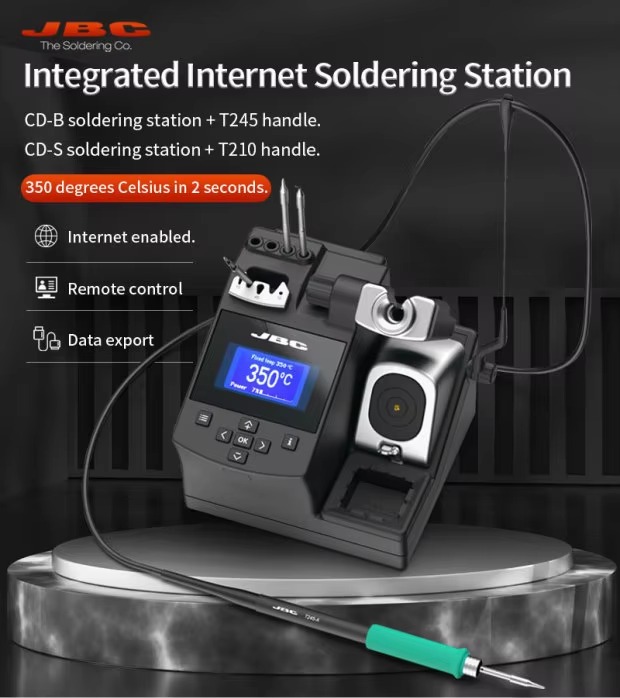

JBC CD-2SHQF Soldering Station

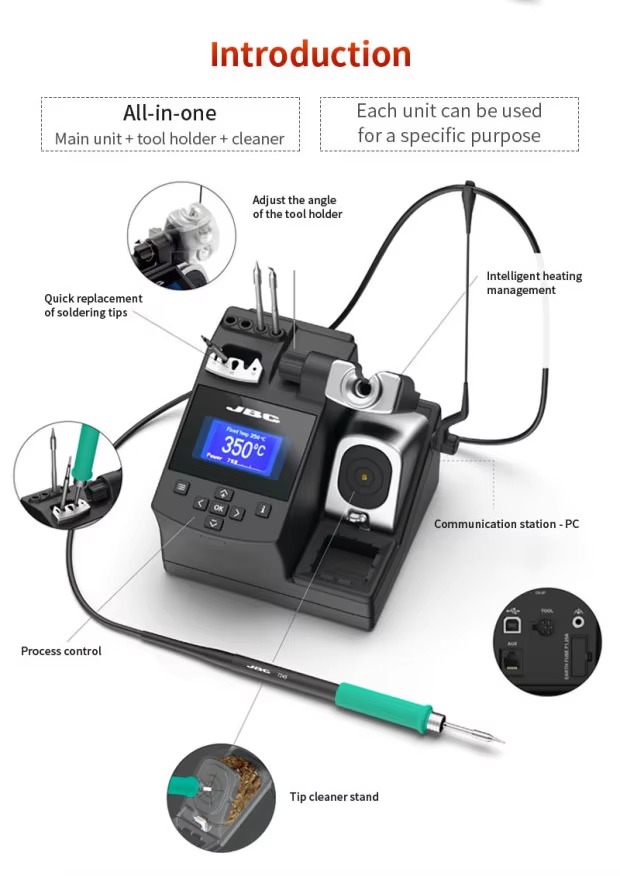

Features: – JBC precision soldering station works with the JBC exclusive heating system and the intelligent sleep & hibernation, over 20 parameters to help manage the soldering process, Professional-grade and precision purpose soldering station for mobile phone motherboard repair. – It features a USB connector to update software, create graphs and manage parameters from a PC. – Complete cleaning system with an antisplash membrane to keep the work area clean. – Use the integrated wiper to remove excess solder from the tip. – Use T210/T245 series handle, with C210/C245 series iron head for precision welding. – You can use the USB-B type data cable to connect the computer to observe the temperature curve. – Fast heating: 2 seconds to 350 degrees. – User-friendly handle control, very comfortable to use the feel. Specification: Voltage: 220V; 110V (110V to 220V transformer) Input fuse: 1A (220V) Output Peak Power: 40W / 23.5V Ambient operating temp: 10-40℃ / 50-104℉ Temperature selection: 90-450℃ / 190-840 F Tip to ground resistance: <2 ohms Tip to ground voltage: <2mV RMS
