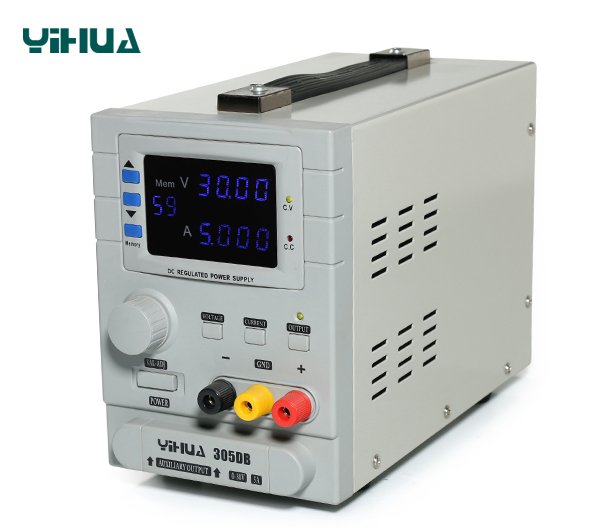

YIHUA 305DB DC Power Supply

1. 4-digit display for accurate displaying of voltage and current values 2. Current protection adjustments are very intuitive and easy to operate. 3. 305DB features 3 positive and negative output voltage and current values. The 3 outputs can work simultaneously, but the 3 output voltage values cannot exceed 30V, and the current value of the 3 outputs cannot exceed 5A. 4. The machine is built with SMT manufacturing and the latest technology. 5. Outputs can be turned off and current and voltage protection can be set to protect test machines. 6. 60 voltage and current values can be stored, and required voltage and current values can be set and selected when needed for utmost convenience. 7. The machine can be controlled via remote PC operation through simple software. 8. Adjustable current protection knobs allow for simple and intuitive operation. Parameters Rated voltage==AC110V/220V±10% 50Hz/60Hz Operating environment==-10～40℃ relative humidity＜90％ Storage Temperature==-10～40℃ relative humidity＜80％ Performance parameters==Output voltage 0～30V Output current==0～5A Output power==150W
